Aluminium Gratings & Stair Treads

FERROGRATE aluminium flat bar gratings are traditional gratings which can be made of several combinations such as Load bar with flat bar and cross bar with round bar and with various mesh sizes as per below tables:

We design our gratings based on our customers various requirements.

Range Available: Aluminium Mill finish, Pickled, Anodised and Powder Coated

Material Grade
Range Available: 6060 / 6063 T6 / 6082 T6

Flat Type
Range Available: Plain or Mechanically Serrated

Load Bar Height(Bearing Bar)
Range Available: 25 mm to 150 mm

Load Bar Thickness (Bearing Bar)
Range Available: 3 mm to 10 mm

Cross Bar Size ( Traverse Bar)
Range Available: 6 mm, 8 mm or 10 mm Round

Mesh Sizes (Pitch)
Range Available:
30×30 , 30×38, 30×50, 30×100,
33×33, 33×38,33×50, 33×100,
35×35,35×38, 35×50, 35×100,
41×41,41×38, 41×50, 41×100,
60×38, 60×50,60×60, 60×100.

Range Available: Industrial Walkways, Platforms, Trenches, Stair Treads, Fencing, Building Facades, Pontoons, Catwalks, Window sunshades, Air condition Grills etc.

Advantages
Range Available: Low weight, Good load Bearing capacity, Corrosion resistant etc

FERROGRATE aluminium press lock type gratings are manufactured with Load Bar and cross bar fixed through Notching and pressing. This type of gratings made out of Flat bars for both Load bar and cross bar.

Our experienced team of engineers can design as per your our clients requirement in the field of Power Plants, Sewage Treatment Plants, Desalination Plants, Airports, Marine, Petrochemicals, Solar, Infrastructure, architectural Buildings etc.

Range Available: Aluminium Mill finish, Pickled, Anodized and Powder Coated

Material Grade
Range Available: 6060 / 6063 T6 / 6082 T6

Flat Type
Range Available: Plain or Mechanically Serrated

Load Bar Height(Bearing Bar)
Range Available: 25mm to 150mm

Load Bar Thickness (Bearing Bar)
Range Available: 3mm to 10mm

Cross Bar Size ( Traverse Bar)
Range Available: Flat Bar 25 to 50mm with thickness 3 to 5mm

Mesh Sizes (Pitch)
Range Available:
30×50, 30×100,
33×50, 33×100,
35×50, 35×100,
40×50, 40×100,
41×50, 41×100.

Range Available: Industrial Walkways, Platforms, Trenches, Stair Treads, Fencing, Building Facades, Pontoons, Catwalks, Window sunshades, Air condition Grills, Curtain walls, Ceilings etc.

Advantages
Range Available: Low weight, Good load Bearing capacity, Corrosion resistant etc

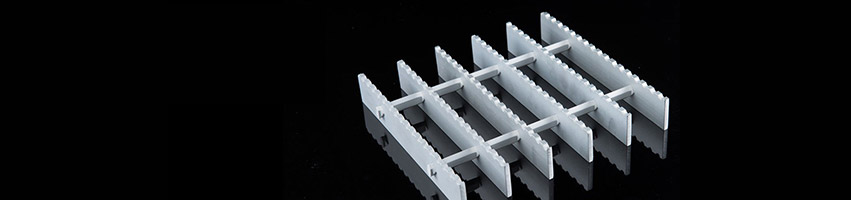

FERROGRATE swaged gratings are manufactured without welding of Load Bar and cross bar. This type of gratings manufactured by high power hydraulic swaging process.

FERROGRATE swaged gratings can be supplied in standard panels of 6mx 1m or 3m x 1m and Tailor made panels.

Range Available: Aluminium Mill finish, Pickled, Anodised and Powder Coated

Material Grade
Range Available: 6060 / 6063 T6 / 6082 T6

Flat Type
Range Available: Plain or Mechanically Serrated

Load Bar Height(Bearing Bar)
Range Available: 20mm to 50mm

Load Bar Thickness (Bearing Bar)
Range Available: 2mm to 6mm

Cross Bar Size ( Traverse Bar)
Range Available: 10x3mm / 12x3mm

Mesh Sizes (Pitch)
Range Available:
30×50, 30×100,
40×50, 40×100,
13.5×100,
17.5×50, 17.5×100,
35×50, 35×100

Range Available: Industrial Walkways, Platforms, Trenches, Stair Treads, Fencing, Building Facades, Pontoons, Catwalks, Window sunshades, Air condition Grills, Curtain walls etc.

Advantages
Range Available: Low weight, Good load Bearing capacity, Corrosion resistant etc

FERROGRATE “T & I” Bar gratings are manufactured with extruded bearing bars in the shape of T & I. In this type gratings the cross bars are passed through load bars at middle. These gratings are used in platforms, walkways, catwalks, trenches, wall partitions etc.

FERROGRATE Diamond Grip Plank gratings can be used in Walkways, Ramps, Platforms, Decking, Loading bays, Roof top walkways and various other applications where more Slip resistant walking is concerned. This type of Plank gratings is made of single piece metal sheets with serrated surfaces in Diamond shaped openings.

Industries we serve:
Automobile, Solar, Airports, Petrochemicals, Power Plants, Marine, Packaging Industries, Mining, Material Handling, Oil & Gas, Oil Rigs, Water & Desalination, Ware house and Shelving etc.

Range Available: Aluminium Mill finish, and Powder Coated

Material Grade
Range Available: 6060 / 6063 T6 / 6082 T6

Type
Range Available: Sheet

Thickness
Range Available: 2.5mm & 3mm

Width
Range Available: 80mm to 1000mm

Applications
Range Available: Walkways, Scaffolding etc…
